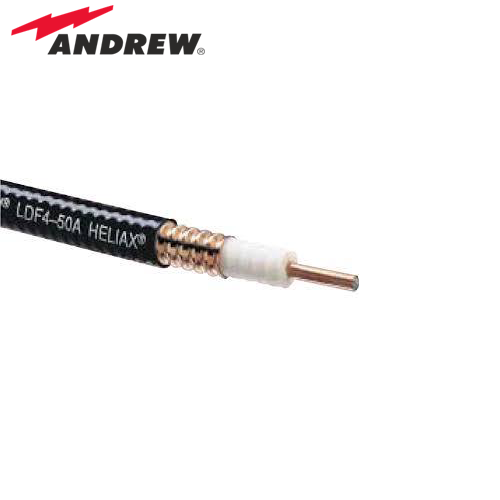

Kabel Andrew Heliax LDF4 1/2″ 50A

kabel andrew heliax ldf4 1/2″ 50a

Kabel Andrew Heliax LDF4 1/2″ 50A

Rp90.000

Kabel Repeater Andrew HELIAX LDF4-50A Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket. Kabel antena repeater kualitas bagus

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.*

Untuk informasi harga terbaru dan stok, silahkan hubungi Sales Support kami melalui kontak berikut:

WhatsApp : 087896573974

Category: ,
Tags: ,

Kabel Andrew Heliax LDF4 50A Ukuran 1/2 inci produksi Andrew Commscope ini adalah kabel standar untuk perangkat Repeater & Radio Base Station.  Kabel ini sebagai penghubung antara perangkat BTS dengan antena. Kabel Andrew Heliax LDF4 1/2″ 50 OHmmerupakan Kabel Heliax dengan Foam Density Busa Rendah. Kabel LDF-4 Heliax Andrew, mempunyai tekstur tembaga bergelombang, Kabel Andrew Heilax ukuran 1/2 inch ini mempunyai jaket PE hitam (Jaket bebas Halogen, tahan api).

FITURKabel Andrew Heliax LDF4 1/2″ 50A

  • Dielektrik busa kepadatan rendah
  • 50Ω impedansi
  • Konduktor luar tembaga bergelombang
  • Konduktor dalam CCA.

Penggunaan

  • Kabel koaksial 50Ω dielektrik busa fleksibel Andrew Commscope adalah kabel pengumpan berkinerja sangat tinggi
  • Merek Heliax Andrew mewakili warisan inovasi teknologi.

Berikut utk Spesifikasi Produk Kabel Andrew Heliax LDF4 1/2″ Inch 50 Ohm sebagai berikut :

Product Classification
Brand ANDREW HELIAX®
Product Series LDF4-50A
Product Type Heliax Wireless Cable
Standards And Qualifications
EN50575 CPR Cable EuroClass Fca
Construction Materials
Jacket Material PE
Outer Conductor Material Corrugated copper
Dielectric Material Foam PE
Flexibility Standard
Inner Conductor Material Copper-clad aluminum wire
Jacket Color Black
Dimensions
Nominal Size 1/2 in
Cable Weight 0.15 lb/ft   |   0.22 kg/m
Diameter Over Dielectric 12.954 mm   |   0.510 in
Diameter Over Jacket 15.875 mm   |   0.625 in
Inner Conductor OD 4.8260 mm   |   0.1900 in
Outer Conductor OD 13.970 mm   |   0.550 in
Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 23.1 pF/ft   |   75.8 pF/m
dc Resistance, Inner Conductor 0.450 ohms/kft   |   1.480 ohms/km
dc Resistance, Outer Conductor 0.820 ohms/kft   |   2.690 ohms/km
dc Test Voltage 4000 V
Inductance 0.190 µH/m   |   0.058 µH/ft
Insulation Resistance 100000 Mohms•km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 8800 MHz
Peak Power 40.0 kW
Velocity 88%
Environmental Specifications
Installation Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -70 °C to +85 °C (-94 °F to +185 °F)
General Specifications
Ordering Note CommScope® standard product (Global)
Mechanical Specifications
Bending Moment 3.8 N-m   |   2.8 ft lb
Flat Plate Crush Strength 110.0 lb/in   |   2.0 kg/mm
Minimum Bend Radius, Multiple Bends 127.00 mm   |   5.00 in
Minimum Bend Radius, Single Bend 50.80 mm   |   2.00 in
Number of Bends, minimum 15
Number of Bends, typical 50
Tensile Strength 113 kg   |   250 lb
Note
Performance Note Values typical, unless otherwise stated
Standard Conditions
Attenuation, Ambient Temperature 20 °C   |   68 °F
Average Power, Ambient Temperature 40 °C   |   104 °F
Average Power, Inner Conductor Temperature 100 °C   |   212 °F

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
680–800 MHz 1.13 24.30
800–960 MHz 1.13 24.30
1700–2200 MHz 1.13 24.30
2300–2700 MHz 1.13 24.30
